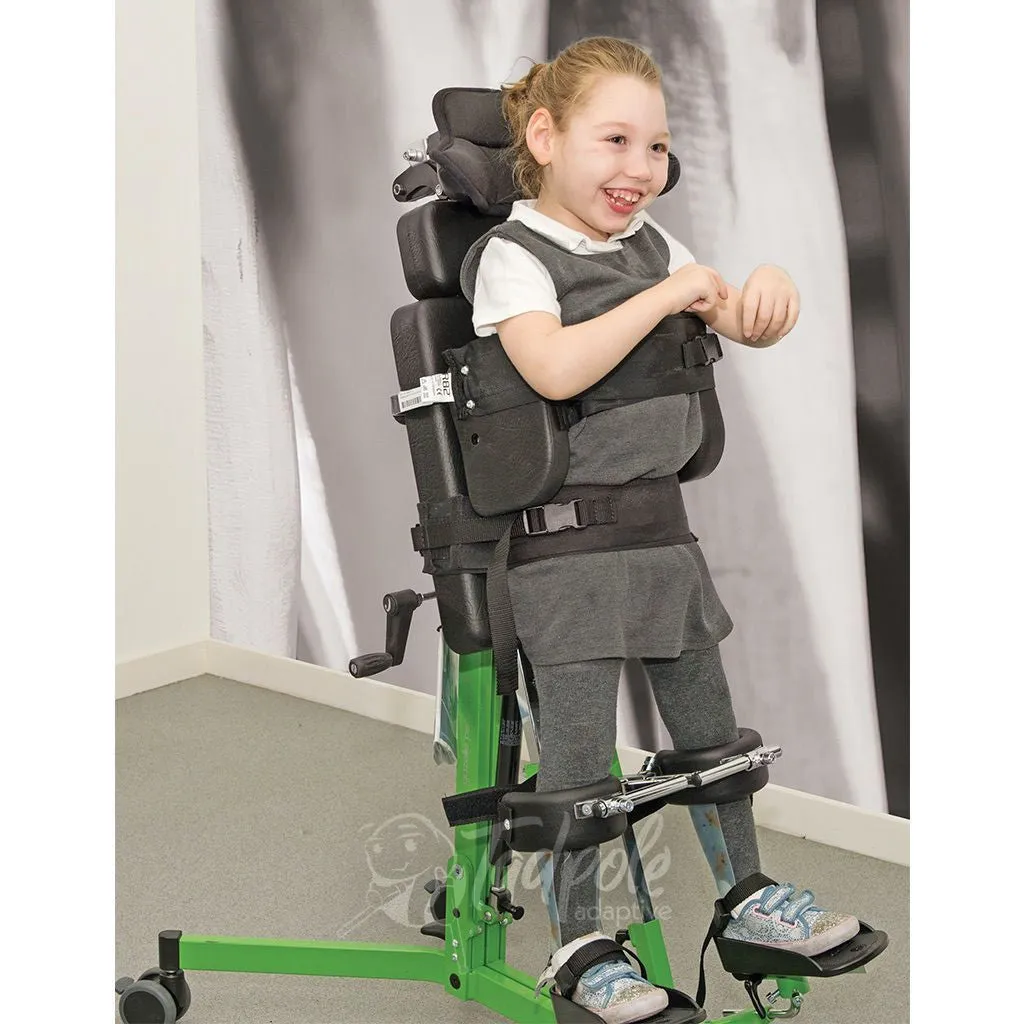

Expertly designed and crafted by rehab and adaptive specialists, R82 for use by special needs children, aged 1 to 14 years, who require either back or front support in order to stand. The highly adaptable Gazelle stander will allow your loved one to enjoy the transformative developmental and health benefits of correct posture and regular standing therapy. In response to sound evidence that regular standing therapy in abduction can halt or even reverse the adverse effects of hip migration in children with cerebral palsy, R82 has created a standing frame that provides up to 30 degrees of abduction in each leg. What’s more, each leg’s abduction angle can be individually adjusted, catering to the special needs of children with a host of unique symptoms and diagnoses. This device’s manual leg abduction mechanism operates in an anatomically correct motion, in order to help seat the head of the femur in position in the acetabulum.Special ball joints in the gazelle’s footplates allow for the optimal positioning and support of almost any necessary ankle or foot placement.Besides assisting children with C.P., the R82 Gazelle can dramatically benefit special needs children with a vast array of unique diagnoses and conditions, thanks to its manifold configuration options and its impressive selection of optional accessories.In addition to upright and supine standing, the Gazelle allows for standing therapy in the prone position, which is the perfect way to obtain maximum stretch of both the knees and the hips.The Gazelle’s ability to tilt from vertical to 15 degrees past horizontal makes it the perfect vehicle in which to perform your special needs child’s daily respiratory therapy and postural drainage.The R82 Gazelle is available in three sizes, each size with its own vibrant color finish.Finally, when it comes time to pack things up or get moving, the Gazelle is easily foldable from the upright position, by loosening just one screw, abducting the leg fixtures and slightly lifting the device…ready for either quick storage or transportation to the next location.
Features

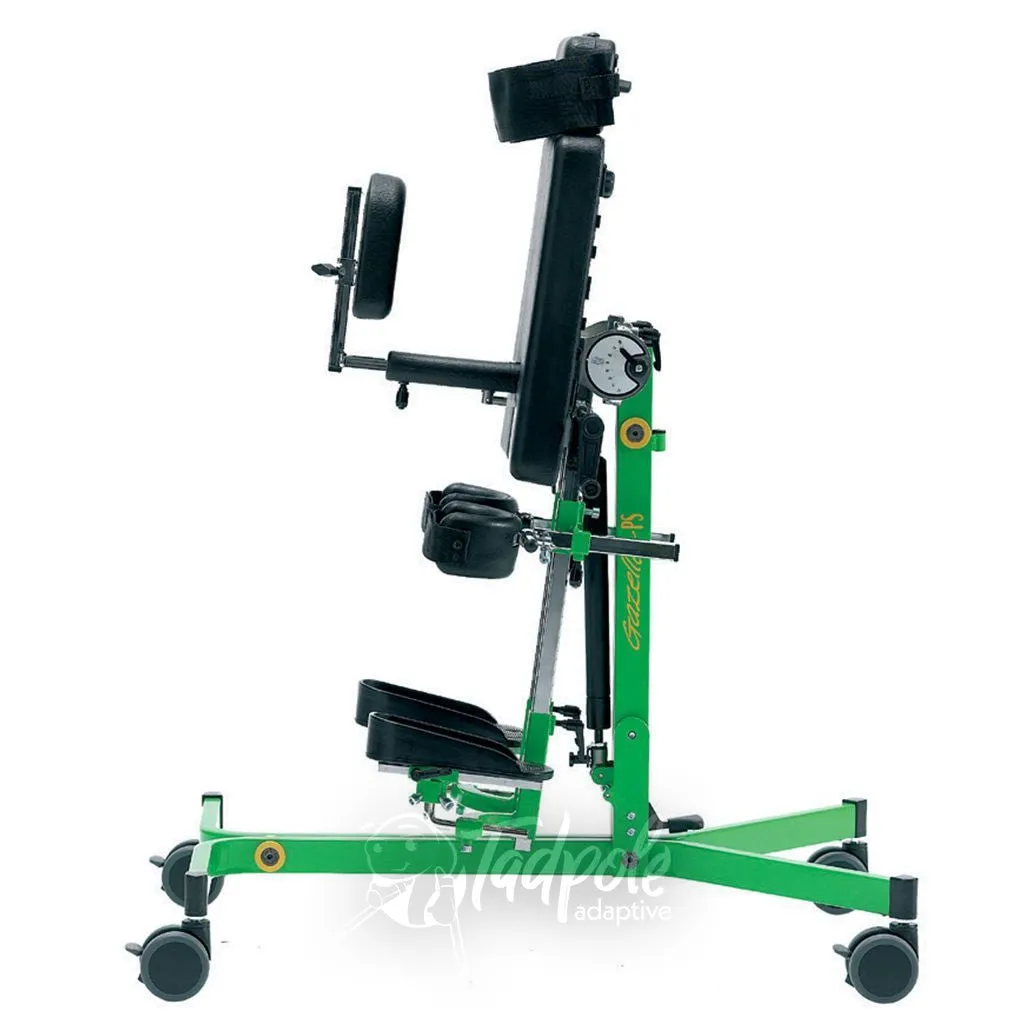

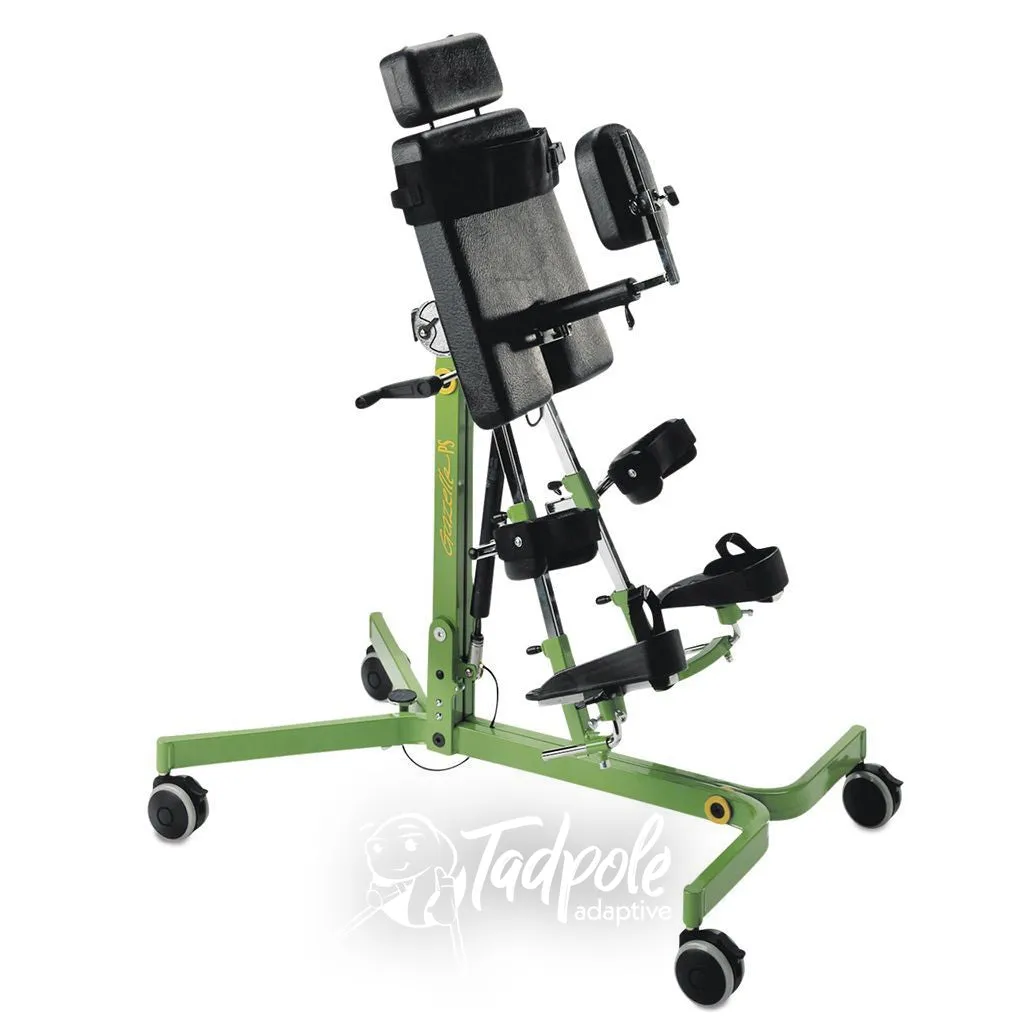

Vertical Tilt
The Gazelle PS tilts from vertical to 15° past horizontal, making it ideal for respiratory therapy and postural drainage.

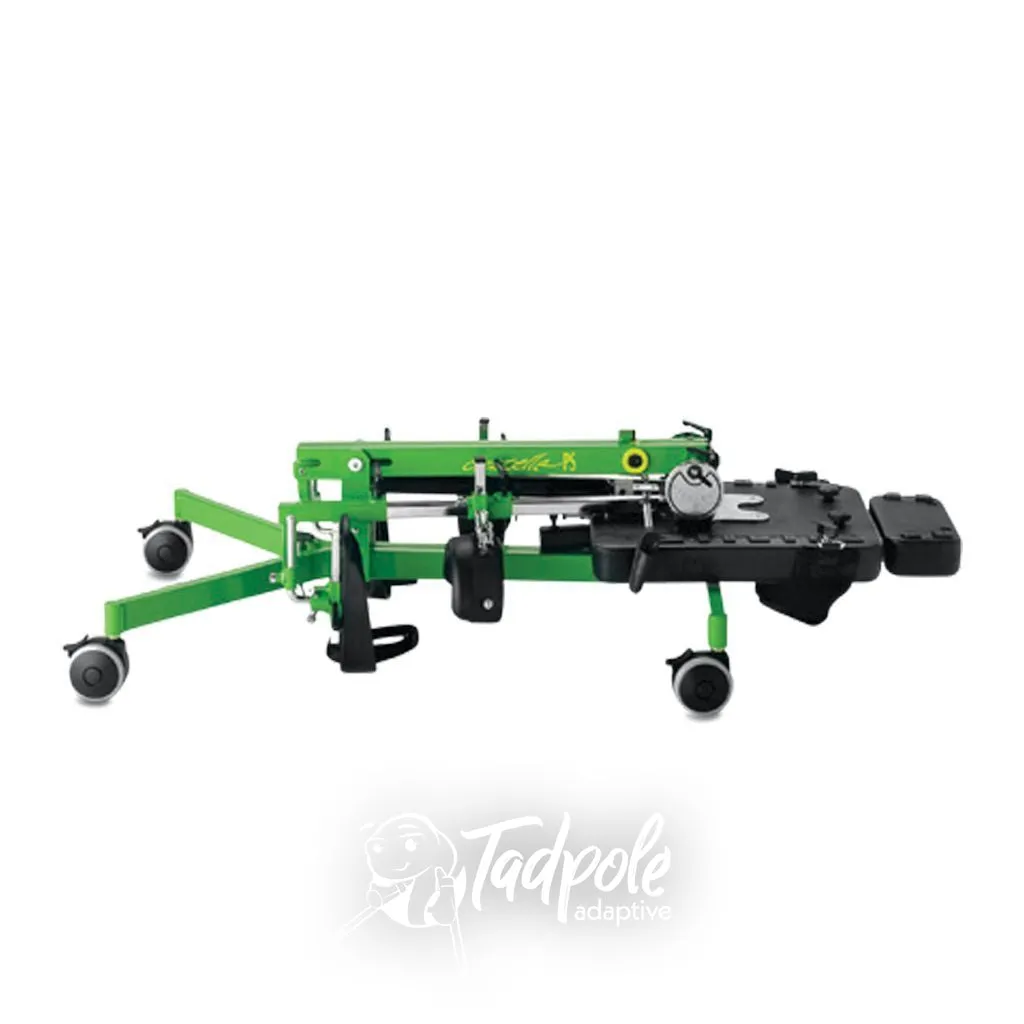

Foldable Design
The Gazelle PS easily folds from an upright position by loosening one screw, abducting the legs, and lifting slightly, making it convenient for storage or transportation.

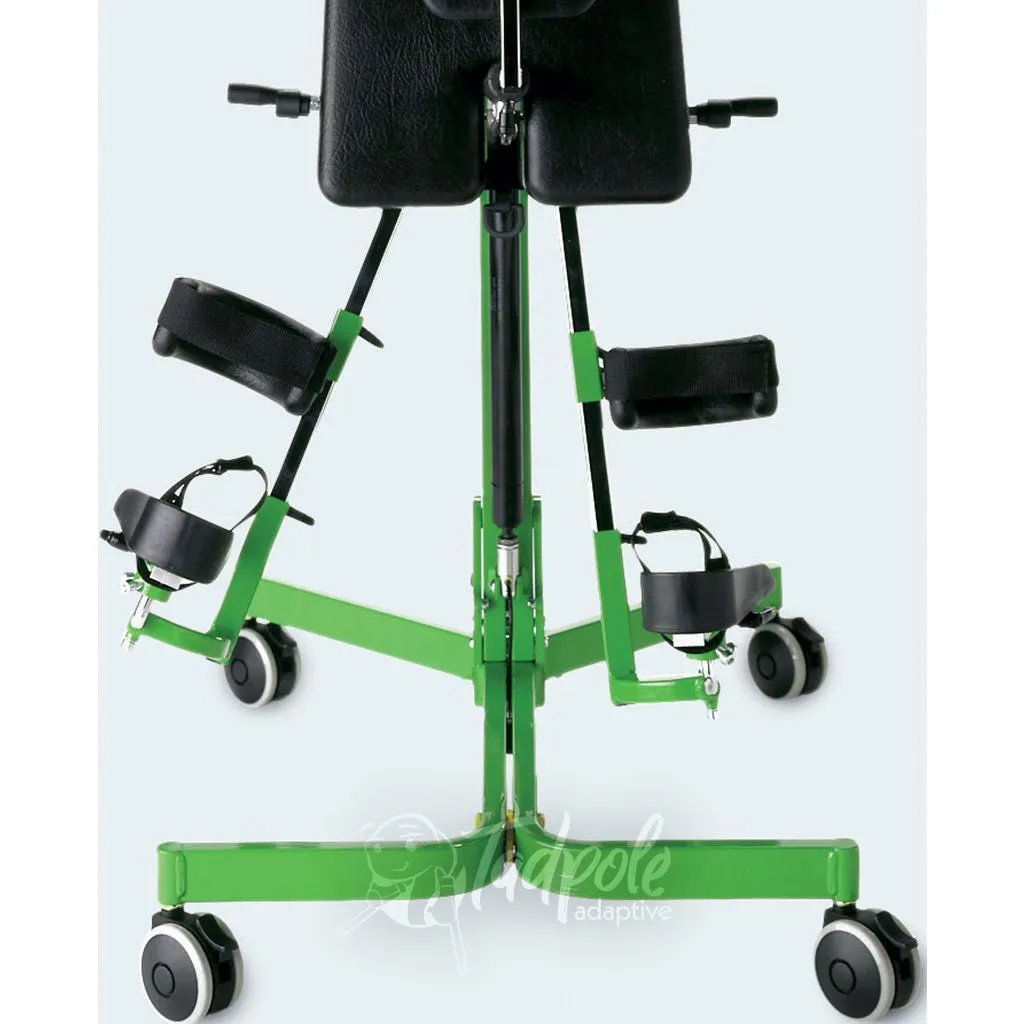

Leg Abduction
The manual leg abduction feature moves in an anatomically correct motion, aiding in seating the femur head into the acetabulum, with adjustable angles for one or both legs.

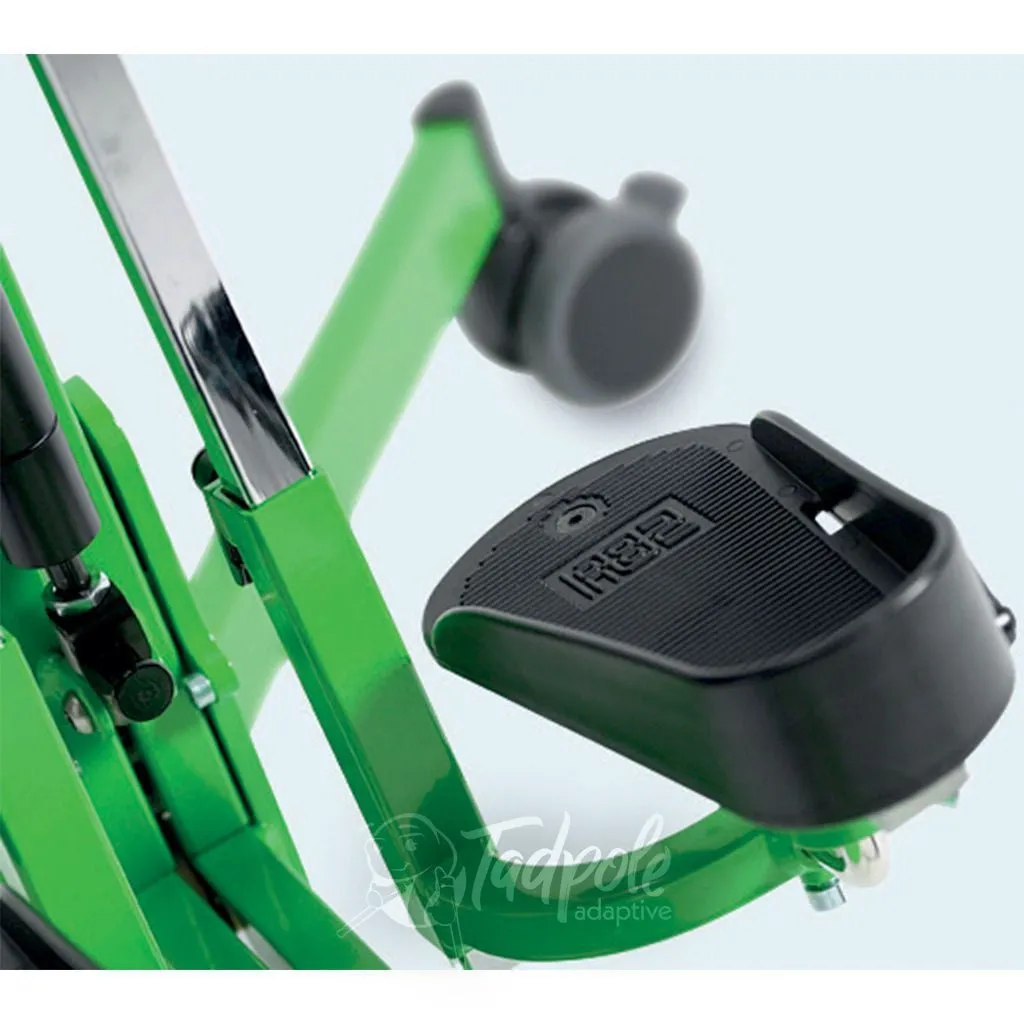

Foot Supports
Choice of Colors
Yellow
(Size 1)
Green
( Size 2)
Blue
(Size 3)
Which Size is Right for You?
Gazelle PS | Size 1, 17.5 cm Foot Plates | Size 2 | Size 3 |
---|---|---|---|
Mass Device | 44 lbs | 48 lbs | 53 lbs |
Maximum Rated Load | 136.6 lbs | 185.1 lbs | 233.6 lbs |
Maximum User Mass | 88 lbs | 132.3 lbs | 176.4 lbs |
Maximum User Weight | 88 lbs | ||
Overall Height - Horizontal | 30" | 31.5" | 35" |
Overall Width | 19" | 23" | 26" |
User Height: Floor to Axil | 18" - 37" | 24" - 41" | 28" - 49" |
Angle Board | 90° - (-15)° | 90° - (-15)° | 90° - (-15)° |
Length | 30" | 31.5" | 35.5" |
Length - Foot-Axila | 18" - 37” | 24" - 41” | 28" - 49" |
Accessories & Options
Trays
Tray with Bowl and Cover, Plastic
Can be equipped with armrests, toybar or grip handle.
Trays
Padding for Tray with Bowl
Foam padding with cover for grey plastic tray with bowl and cover plate.
Trays
Toybar for Plastic Tray
Specially used for prone or supine standing.
Head Supports
Head Support with Facial Aperture
For correct position and support.
Head Supports
Anatomic Head Support with Facial Aperture
For correct positon and support.
Postural Supports
Side Supports
For additional support and safety
Postural Supports
Side Supports, Interior
For additional support and safety.
Postural Supports
Side Supports, Exterior
For additional support and safety.
Postural Supports
Trunk Support Extension
For extension of the trunk support. Helps support the child’s trunk position.
Head Supports
Mounting for Head Support
For mounting of other head supports. See accessories section.
Head Supports
Head Support System
For correct positioning and support in the vertical or prone position.
Leg and Foot Supports
Angling of Lower Leg
When individual angling of the user’s lower legs is needed.
Postural Supports
Strap for Side Supports
For added safety.
Vests, Belts and Straps
Foot Straps
These straps are used to stabilize the user’s feet on the footplate. The straps are available with velcro or plastic lock.
Trays
Arm Rests for Plastic Tray
Specially used for supine standing. One size fits all
